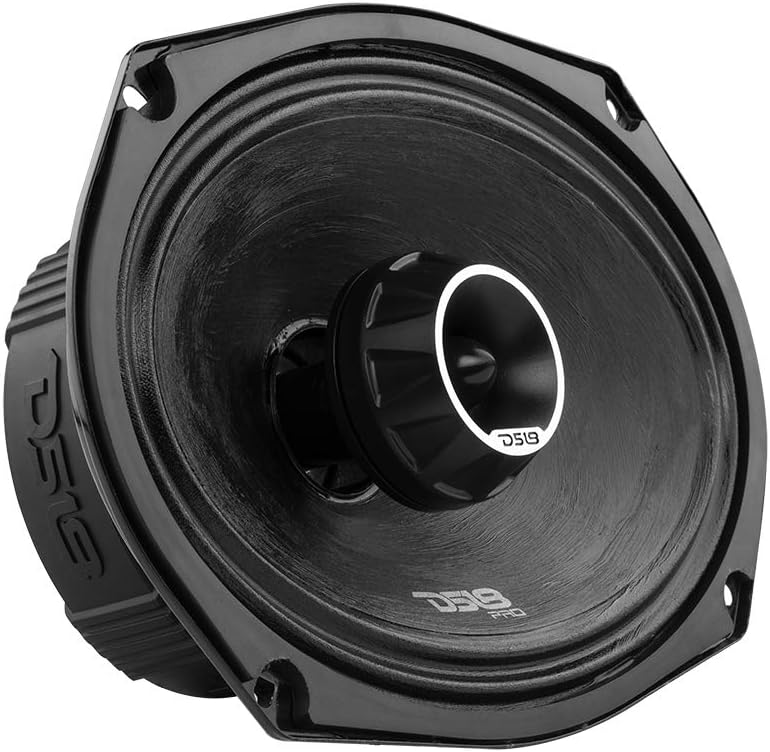

6.5" Hybrid Mid-Range Car Audio Loudspeaker with Compression Driver Horn, 450W Max, 4 Ohms C300558

PRO 8" Hybrid Mid-Range Loudspe

PRO 8" Hybrid Mid-Range Loudspeaker with Built-in Driver 4-Ohm

DS18's Hybrid speakers give you the best of both worlds of mids and highs combined into one pro audio combination speaker. This high powered pro audio mega speaker combines both a 8" high volume midrange speaker that also has a high wattage driver attached to the rear to give you a full range of frequencies at an amazingly loud volume. These Hybrids have water resistant cones to help battle elements and are perfect for people looking to place a high wattage, high volume loudspeaker together without having to separately mount am additional driver. SPECIFICATIONS Nominal Diameter 8” Nominal Impedance 4 OHMS RMS Power Handling 250W MAX Power Handling 500W Sensitivity (1w/1m) 97dB Frequency Response 80Hz-20KHz Recommended Hi Pass Crossover 100 Hz Number of Ways 2 Pair or Single Single

MID-RANGE SPECIFICATIONS Voice Coil Diameter 1.5” / 38.6 mm Voice Coil Former Material Glass Fiber Winding Material CCAW Cone Material Water Resistant Paper Surround Material Cloth Basket Material Aluminum Basket Color/Finish Glossy Red Magnet Material Ferrite Magnet Weight 27 oz Displacement volume 0.051L

THIELE & SMALL PARAMETERS Equivalent Volume Vas 10.048L Excursion (one way) Xmax 9.2 mm Free Air Resonance FS 135Hz Mechanical Factor Qms 5.96 Electrical Factor Qes 1.321 Total Factor Qts 1.011 Mechanical Mass Mms 9.69g Mechanical Compliance Cms 137.345 mm/N BL Factor BL 4.58 Voice Coil Inductance Le 4.22mH Cone Area Sd 226.98 Cm2 DC Resistance Re 3.4 oaker with Built-in Driver 4-Ohm
